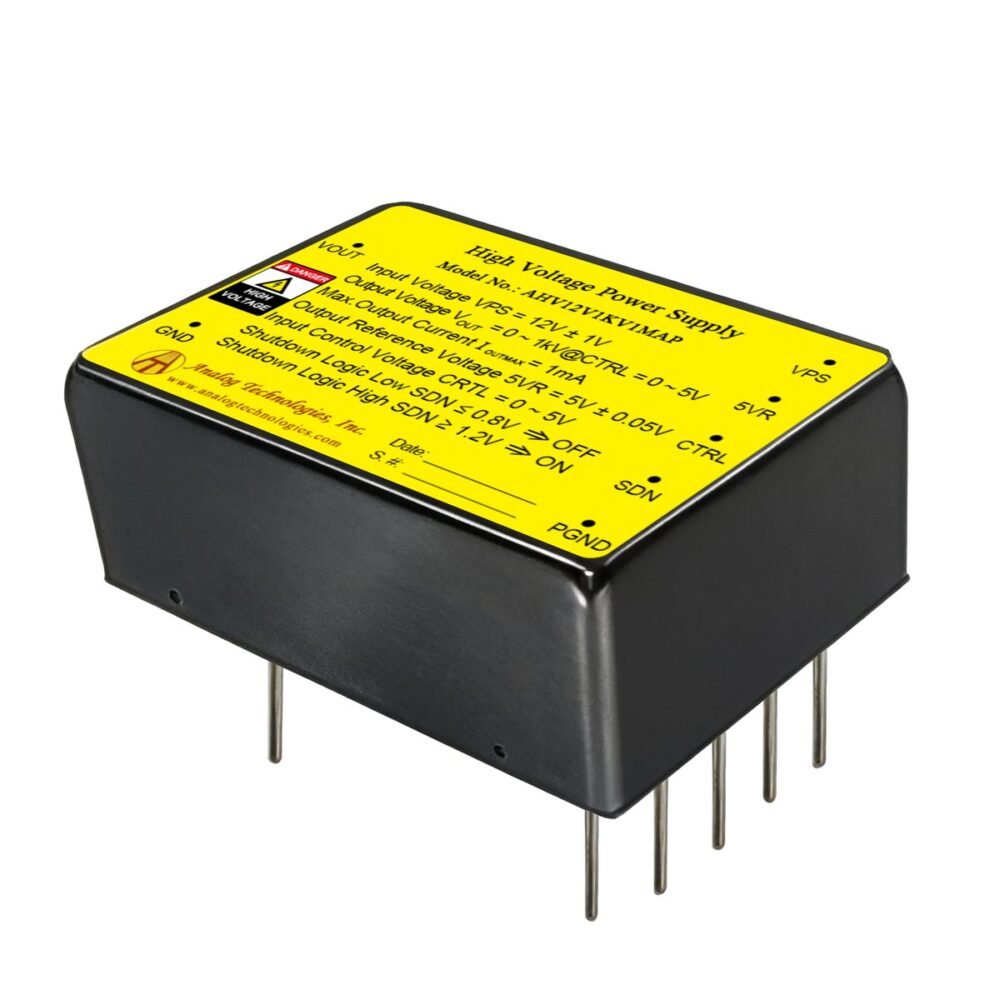

The AHV12V1KV1MAP is a dc-dc high voltage power supply designed for dip package high voltage power supplies. It converts 11V to 13V input into a high voltage output up to 1kV, with a maximum output current of 1mA.

The module is designed for efficient DC-DC high voltage conversion, featuring compact size, reliable regulation, and convenient integration into low voltage powered systems. It is suitable for applications such as laboratory experiments, portable systems, compact high voltage modules, and scientific instrumentation. Small Size

Input Voltage: 11V to 13V
Output Voltage: 1kV
Max. Output Current: 1mA
Output Type: Constant Voltage
Package Type: DIP
Input Type: DC
Dimension: 55×35×20
