$399.00

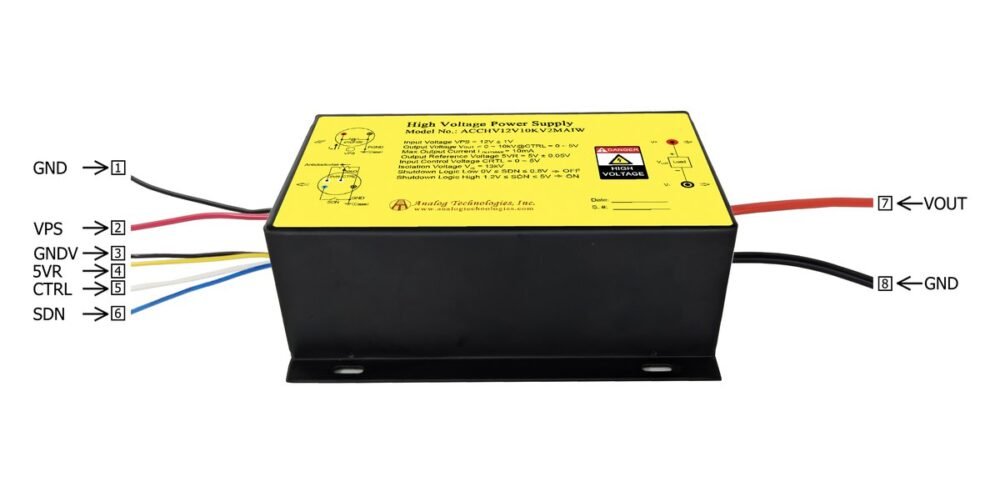

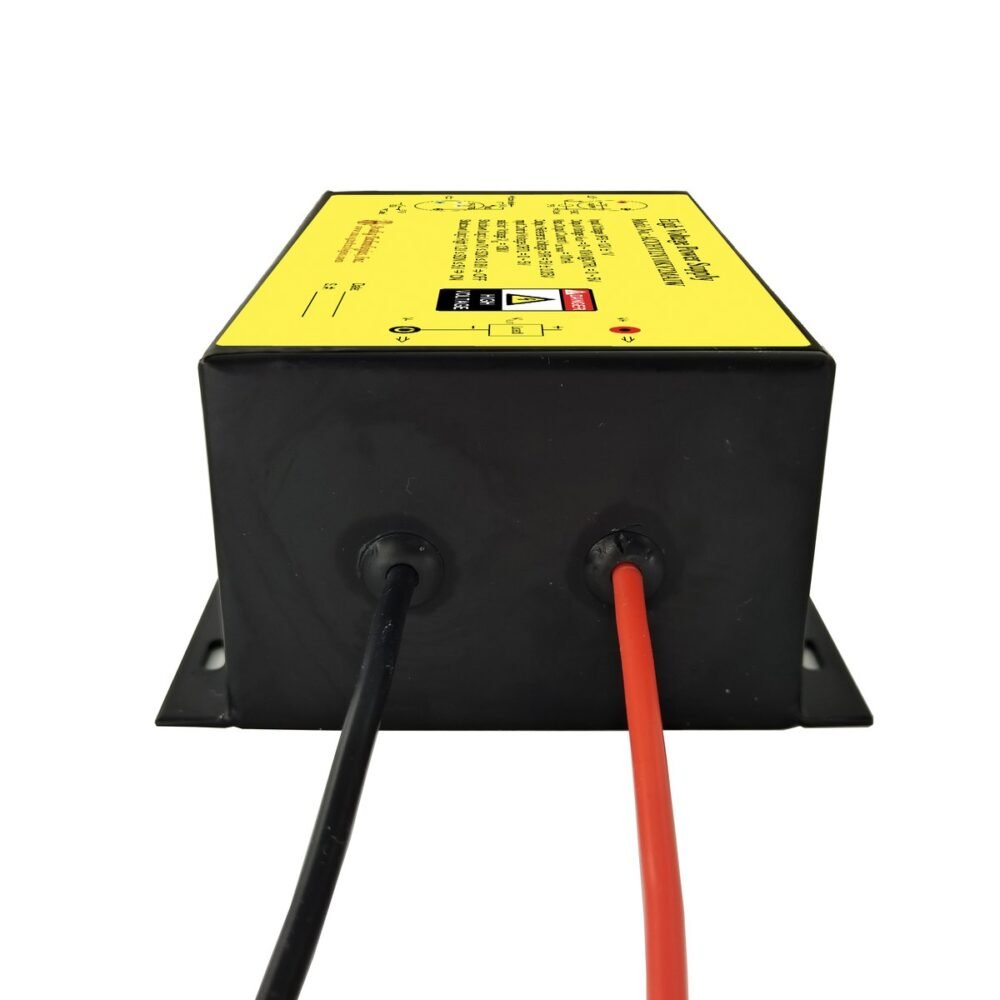

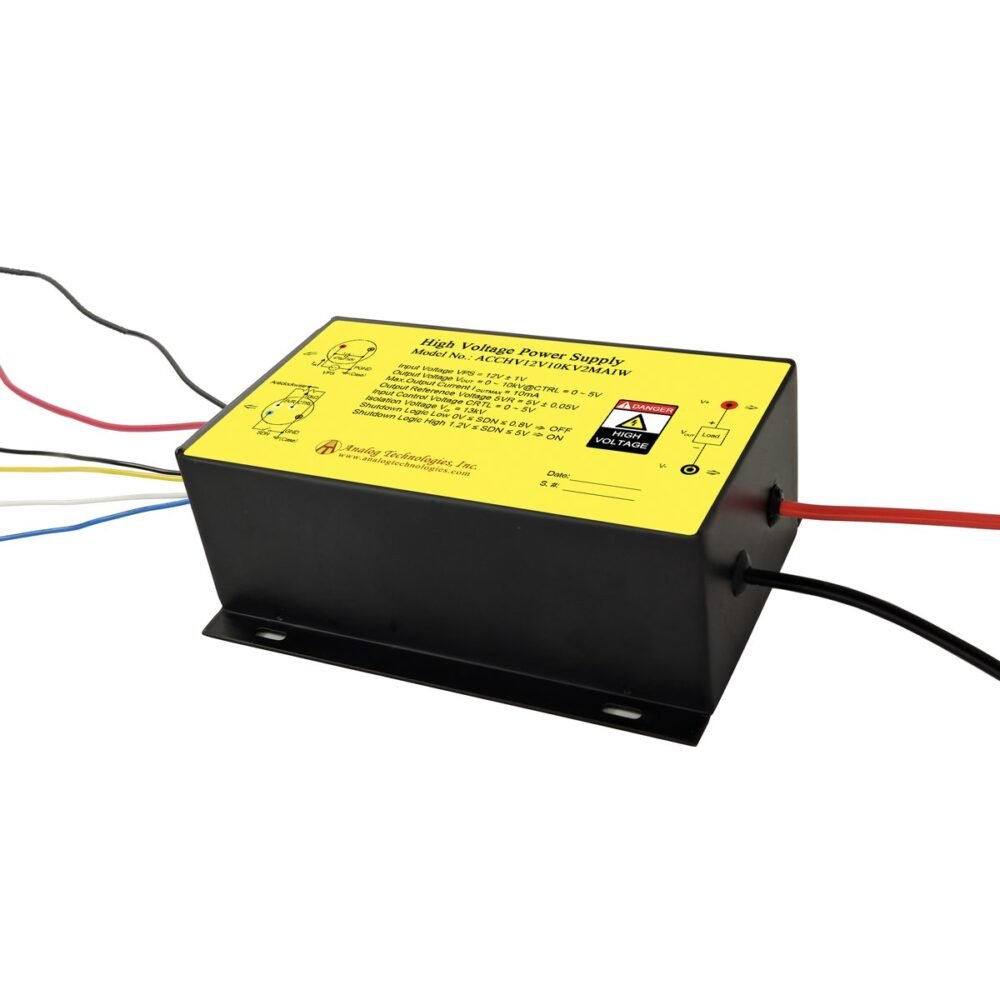

Capacitor Charging High Voltage Power Supply
Input Voltage: 12V ± 1V
Output Voltage: 0 to 12kV
Max. Output Current: 2mA
Out of stock
Product Overview
The ACCHV12V10KV2MAIW is a capacitor charging high voltage power supply designed for 12v input capacitor charging hv power supplies. It converts 12V ± 1V input into a high voltage output up to 0 to 12kV, with a maximum output current of 2mA.
The module is optimized for capacitor charging applications, providing controlled high voltage output suitable for pulse power systems, energy storage charging, and related high voltage subsystems. It is suitable for applications such as capacitor charging circuits, pulse power systems, discharge circuits, and energy storage applications. Constant current for charging capacitors with clamped voltage
Specifications
Input Voltage: 12V ± 1V
Output Voltage: 0 to 12kV
Max. Output Current: 2mA
Output Type: Constant Curent/Constant Voltage(CCCV)
Package Type: Lead Wire
Input Type: DC
Dimension: 140×100×55
Output Voltage: 0 to 12kV
Max. Output Current: 2mA
Output Type: Constant Curent/Constant Voltage(CCCV)
Package Type: Lead Wire
Input Type: DC
Dimension: 140×100×55
| Weight | 3 lbs |
|---|---|
| Output Voltage Range | 1 to 10kV, Up to 1kV |
| Polarity | Positive |
| Package Type | Lead Wire |
